DRILLING RIGS

Drilling Capabilities: Sonic, Diamond, Air coring, Air/Mud Rotary, SPT, Packer Tests

Sample Size: 50.8(2”),3”, 4” 6” 8” 10”

Average Depth: +/- 150’


Strengths

• Speed and depth of drilling while still being         able to collect a sample
• Install wells in difficult ground conditions.
• Track Mounted
• Pipe handler for “hands-free” pipe                        connections.
• Weighted wireline system for deeper depths         and increased efficiency

Drilling Capabilities: Direct push, Solid stem augers, Hollow Stem augers, Air/Mud Rotary, Diamond/Air coring, Odex, SPT’s, EC Probe, Imaging Equipment, Packer Test

Sample Size: 1.75”, 3”, 4.5”, 6”

​

Average Depth: +/- 80’


Strengths

• The "Swiss Army Knife" of drilling rigs

• Widest range of drilling method capability of any rig on the market
• Ability to switch between drilling methods in a very short time.

• Track Mounted

• Most powerful direct push hammer on the market.

• Handles larger size tooling for better quality installations.


Drilling Capabilities: Direct push, Solid stem augers, Hollow Stem augers, SPT’s, EC Probe, Imaging Equipment, Injection Equipment

Sample Size: 1.75”, 2", 3”, 6”

​

Average Depth: +/- 40’


Strengths

• Very efficient BH sampling

• Ability to quickly change from direct push to augers.

• Compact tracked rig.

​

Check out www.helisourceltd.com for a closer look at their units.

Drilling Capabilities:

Direct Push, and Solid stem augers

Sample Size: 1.75", 4"

​

Average Depth: +/- 20’


Strengths

• Heli Portable

• Will fit through a 36" Doorway for indoor drilling

• Only requires 10' of clearance.

• Can run up to 100' of hydraulic hose to eliminate Carbon Monoxide fumes indoors.

• Drill Rig 590kgs (1300lbs)

• Power Pack/UTV 794kgs (1750lbs)

• Aluminum Supply Box Empty 136kgs (300lbs)

• Drill guards and roll cage available upon request

​

Drilling Capabilities:

Direct Push, and Solid stem augers

Sample Size: 4"

​

Average Depth: +/- 40’


Strengths

• Weighs approximately 816kg or 1800lbs

• Runs 1.5 m (5') Aguers

• Self-contained power unit.

Drilling Methods: Solid Stem Augers

Sample Size: 101.6mm (4”)

Runs 1m (3’) augers

Weights: Carrier with Mast – 621kgs (1370lbs)

Carrier – 488kgs (1075lbs)

Mast – 127kgs (280lbs

Lift Cage with 9m (30’) of Augers – 322kgs (710lbs)

All Together 943kgs (2080lbs)

Drilling Capabilities:

Solid stem augers, Hollow Stem augers, and SPT’s

Sample Size: 6”, 8", 12"

​

Average Depth: +/- 40’


Strengths

• Minimal setup time

• 4x4 equipped

• Great for multiple sites in one day

• Comes with tracks or tires

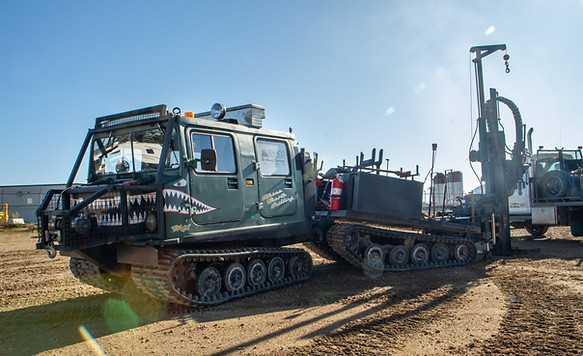

Drilling Capabilities: Direct Push, Solid Stem Augers, Hollow Stem Augers, Diamond Coring, SPT's, and Packer Tests.

Sample Size: 2”, 6”

Average Depth: +/- 30’


Strengths

• Capable of traveling over virtually any type of terrain.

•The ability to transport up to 4 people to site.

•The rear portion can be converted to a carrier for remote water sampling, weed spraying or crew transport needs.

• Much more cost-effective than renting a helicopter.

• Potentially eliminate the need for ice roads.

Drilling Capabilities:

Direct Push, and Solid stem augers

Sample Size: 2"

​

Average Depth: +/- 8’


Strengths

• Able to achieve quality samples from tight or difficult to access locations.

• Small and very portable.

• Great for sediment sampling

​
